When a large area of corrosion pits exist on the outer wall of the pipeline, the existing ultrasonic C-scan imaging detection technology cannot be coupled. AIS company adopts ultrasonic and laser composite technology to realize rapid scanning imaging of corrosion inside and outside the pipeline. The newly upgraded high-speed automatic scanner RoboScannerⅡ can automatically turn 360 degrees on the 4-inch pipeline and crawl along the pipeline axis without manual movement. Professional for containers, pipes, spherical tanks, storage tanks inside and outside wall corrosion of the rapid inspection and evaluation.
Technical parameters:
Ø Multi-functional magnetic wheel four-wheel drive, independent suspension and curved surface;
Ø Remote control, vertical/axial crawling along the pipeline, 360 degree automatic steering, automatic adjustment of scanner position, no manual movement;
Ø It is suitable for high speed scanning of corrosion and weld defects in T type and several types of overhead pipes and large containers above 4 inches.
Uniaxial mode: used for linear TOFD scanning of welds;
Dual-axis mode: Used for C-scan imaging of pipeline corrosion;
Ø Universal interface, which can match the existing ultrasonic imaging equipment in the market;
Ø Scanning range: suitable for pipe containers over 4 inches;
Y-axis (grating arm) length: 10-- 22 inches;
Scan speed: X axis: up to 5 "/ s;
Y-axis: Up to 20 inches per second

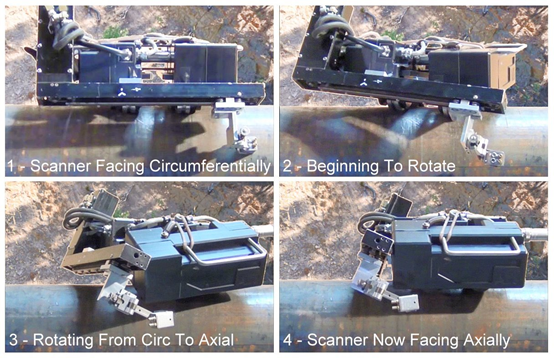

Intelligent 360 degree automatic steering, vertical/axial crawling along the pipe, remote control, no manual movement
Intelligent 360 degree automatic steering, vertical/axial crawling along the pipe, remote control, no manual movement
